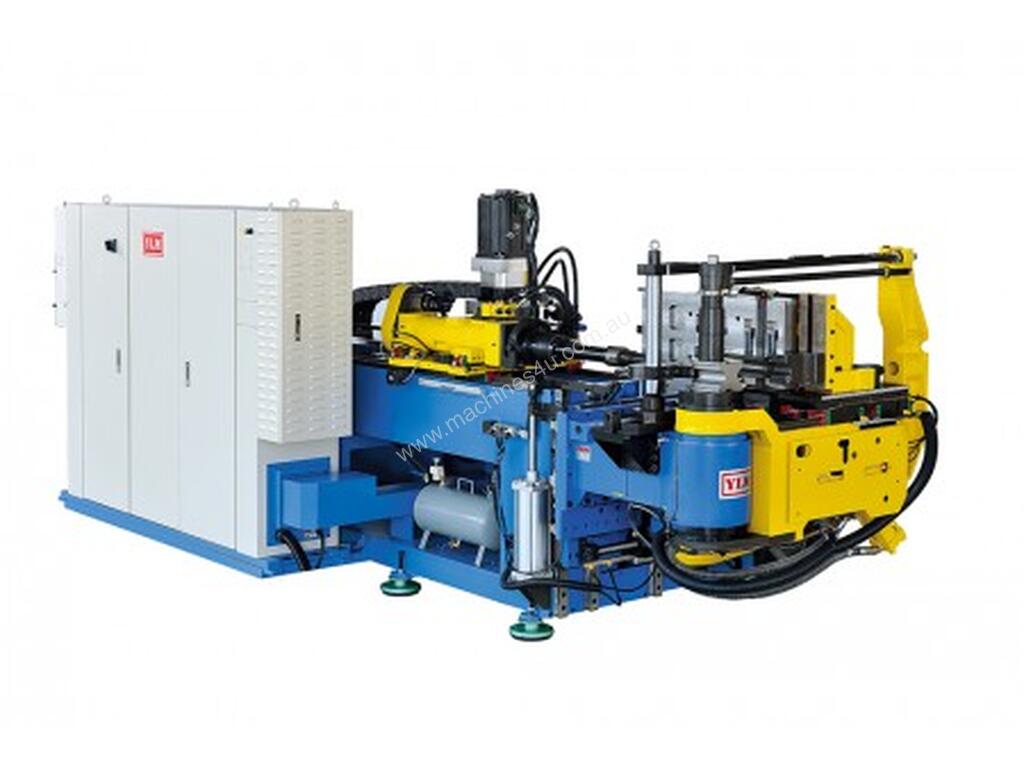

YLM - CNC hybrid tube bending machine - CNC-90
VIC -
-
-
-
+1
YLM - CNC hybrid tube bending machine - CNC-90 : $472,000 - 502,000 AUD ($519,200 - $552,200 Inc. GST)
Features of Hybrid Tube Bender
1. The series of machine employs hydraulic valves and integrated circuits ti control bending motion individually, which will extend the service life of he hydraulic parts.
2. Large bending machine is equipped with a manually adjusted digital flow regulation valve to control the speed of bending motion.
3. Servo drive provides high accuracy in bending positioning, that ensures high quality bending.
Suitable industries: Exercise equipment, Boiler, Shipbuilding, Heavy transportation vehicle, Chemical engineering, Power plant, Diesel engine, Exhaust pipe for automotive and motorcycle, Architecture, Aircraft
CNC pipe bender, Hydraulic Pipe Bending Machine, tube bender with hydraulic tube bending machine, CNC Automatic Tube Bending Machine
PECIFICATION
Machine Name CNC-90MS-6A
Max. tube o.d. bending capacity(Mild steel CLR1.5D)(mm) 88.9x2.7
Range of CLR (°) 250
Max. bending radius difference (mm) 90
Max. bending angle (°) 190
Mandrel working distance (mm) 2500
Manufacture speed Max. Tube feeding speed (mm/sec) 653
Tube rotation speed (mm/sec) 180
Max. Tube bending speed (mm/sec) 63.49
Repeatability Tube feeding Precision (mm) ± 0.1
Tube rotation Precision (mm) ± 0.1
Tube bending Precision (mm) ± 0.1
Overall weight (Kgs) 7900
Machine length (mm) 6062
Machine width (mm) 2103
Machine height (mm) 1942
Operating height (mm) 1274
